Fowler High Wheel Double Frame Mole Drainer
Fowler Catalogue Photograph
3D CAD Solid Model in 1:8 scale
Drawing Started: 17-Oct-21
Construction Started: 24-Nov-21
Finished: 07-Jun-22
Length - 753mm; Width - 291mm;
Height - 90mm
Exhibited at:
Midlands Model Engineering Exhibition - Oct'22
Great Dorset Steam Fair - Aug'22
Chickerell Steam & Vintage Show - Jul’24
STAGE 1
STAGE 2
STAGE 3
STAGE 4 - TYNE LIFTED
STAGE 4 - TYNE IN WORK
STAGE 1 - 70 pieces
Part: UNDERFRAME
Started: 24-Nov-21
Finished: 01-Dec-21
Wood: Turkey Oak, Holly, Box
No of Pieces: 70 pieces
Top View
STAGE 2 - 319 pieces
Part: TOPFRAME & REAR WHEELS
Started: 02-Dec-21
Finished: 06-Jan-22
Wood: Turkey Oak, Mahogany, Holly, Box, Yew
No of Pieces: 249 pieces
Rear Wheels
STAGE 3 - 370 pieces
Part: FRONT WHEELS & ROPE GUIDES
Started: 08-Jan-22
Finished: 25-Jan-22
Wood: Beech, Turkey Oak, Box
No of Pieces: 51 pieces
Top View
Rope Guide
STAGE 4 - 1587 pieces
Tyne Lifted
Part: FINAL STAGE - TYNES & CATARACT
Started: 12-Oct-21
Finished: 17-Oct-21
Material: Beech, Holly, Hawthorn, Turkey Oak, Chains, Food Safe Oil, Corian®
No of Pieces: 174 pieces
Tyne In Work
Tyne In Work

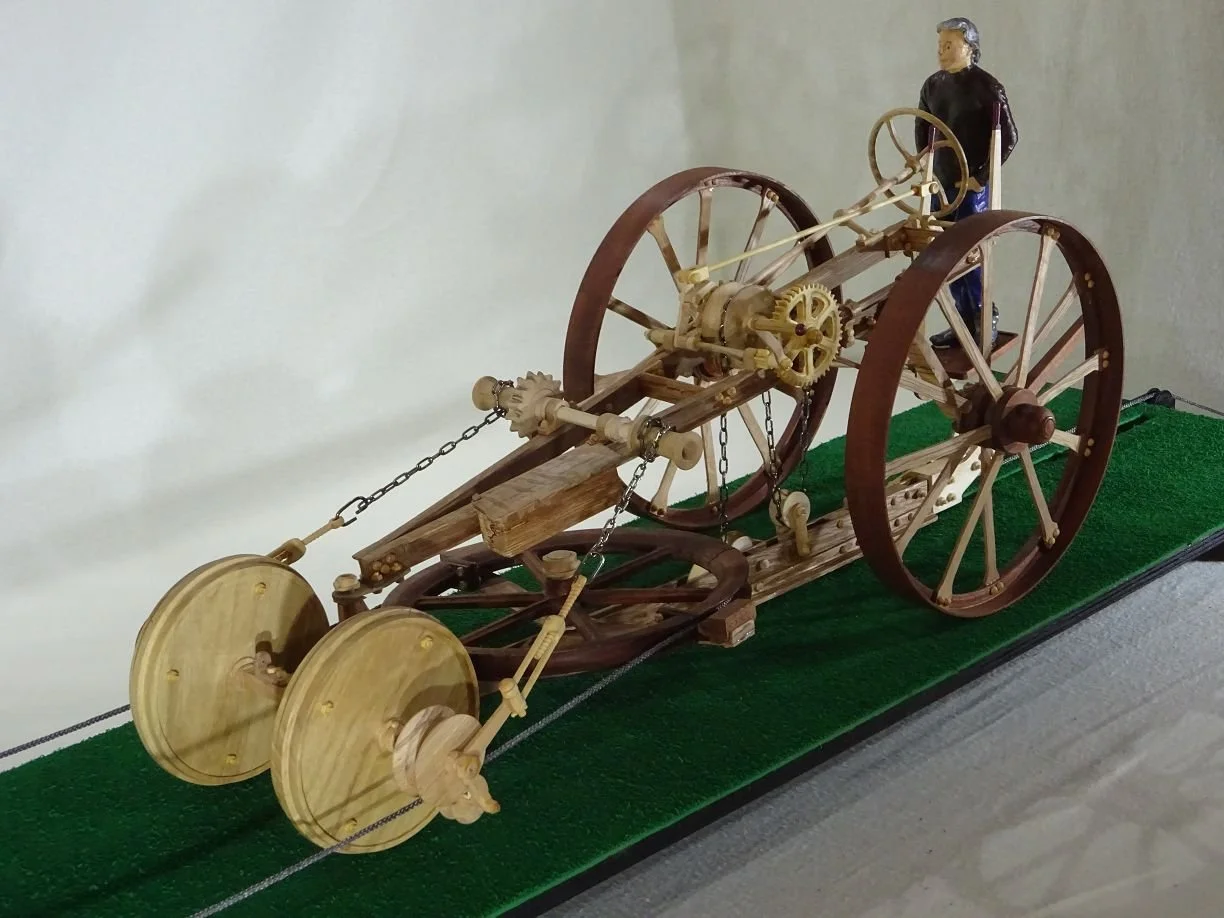

General View
Steering
Manual Lifting
Retaining Mechanism
